Cudy Ethernet 24-Port Switch GS102410/100/1000

85.00$ 977,500 ل.س

GS1024 2.0 – 24-Port Gigabit Unmanaged Switch 10/100/1000 Mbps
🖧 Product Overview
• Model: GS1024 2.0 • Type: 24-Port Gigabit Ethernet (GbE) Unmanaged Switch • Speed: 10/100/1000 Mbps per port • Functions: VLAN / Extend Modes • Cooling: Fanless system • Installation: Desktop or Rack-Mount • Dimensions: 270 × 182 × 44 mm (10.63 × 7.17 × 1.73 inches) • Weight: 1057 g (37.28 oz.)
🔌 Interfaces & Controls
• Gigabit RJ45 Ports: 24 (10/100/1000 Mbps) • Extend Mode Ports: Ports #1 ~ #22 • VLAN Mode Ports: Ports #1 ~ #22 • LED Indicators: Power, Speed / Link / ACT for each Ethernet port • Physical Buttons: VLAN / Default / Extend DIP Switch • Power Input: AC Inlet
⚙️ Performance
• Copper Speed & Distance: – Cat. 3+: 100m @ 10 Mbps – Cat. 5+: 100m @ 100 Mbps – Cat. 5e+: 100m @ 1000 Mbps – Cat. 5e+: 250m @ 10 Mbps (Extend Mode only) • MAC Address Table: 8192 entries • Max Switching Capacity: 48 Gbps • Max Forwarding Rate: 35.712 Mpps
🔋 Power Specifications
• Power Method: AC • Input Voltage: 90–260V~, 50/60Hz • Max Power Consumption: 20W
📡 Supported Protocols
• IEEE 802.3 Standards: – 802.3x Flow Control – 802.3i 10BASE-T – 802.3u 100BASE-TX – 802.3ab 1000BASE-T • Layer 2 Features: IGMP Snooping, Loop Prevention
🛡️ Reliability & Grounding
• Grounding Methods: Three-Prong Plug, Dedicated Grounding Point
🌡️ Environmental Conditions
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) • Operating Humidity: 10% ~ 90% (non-condensing) • Storage Humidity: 5% ~ 90% (non-condensing)
🧱 Mechanical & Installation
• Dimensions: 270 × 182 × 44 mm (10.63 × 7.17 × 1.73 inches) • Casing Material: Metal • Installation Options: Desktop, Rackmount via brackets

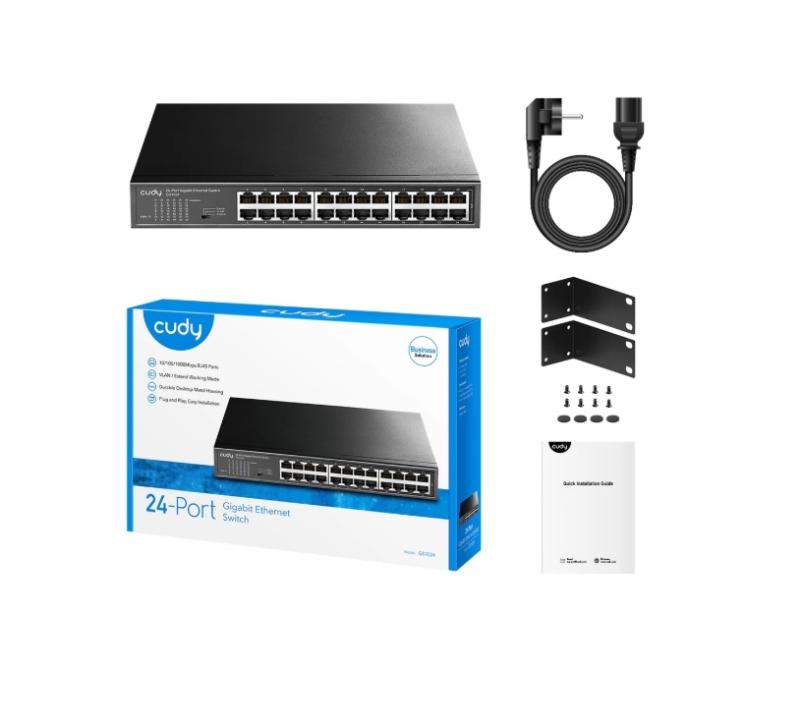

📦 Package Contents
• GS1024 Switch • Power Cord • Installation Guide • Mounting Kit

الشركة : ZERO ONE

الحالة : جديد
