cudy poe switch 24p 10/100/1000 GS1028PS2

255.00$ 2,932,500 ل.س

GS1028PS2 1.0 – 24-GbE PoE Switch with 2 Uplink SFP 10/100/1000
🖧 Product Overview
• Model: GS1028PS2 1.0 • Type: 24-Port Gigabit Ethernet (GbE) PoE Switch • Speed: 10/100/1000 Mbps per port • Uplink: 2× 1.25G SFP Slots • Power Supply: 300W • Cooling System: Silent (fanless) • Modes: Default / VLAN / Extend • Installation: Desktop or Rack-Mount • Dimensions: 440 × 204 × 44 mm (17.32 × 8.03 × 1.73 inches) • Weight: 2905 g (102.47 oz.)
🔌 Interfaces & Controls
• Gigabit RJ45 Ports: 24 (10/100/1000 Mbps) • PoE Ports: #1 ~ #24 (802.3at/af compliant) • Max Power per PoE Port: 30W • Extend Mode Ports: #17 ~ #24 • VLAN Mode Ports: #1 ~ #24 • SFP Uplink Ports: 2 × 1.25G • LED Indicators: Power, Speed / Link / ACT per Ethernet port • Physical Buttons: DIP switch for VLAN / Default / Extend • Power Input: AC Inlet
⚙️ Performance
• Copper Speed & Distance: – Cat. 3+: 100m @ 10 Mbps – Cat. 5+: 100m @ 100 Mbps – Cat. 5e+: 100m @ 1000 Mbps – Cat. 5e+: 250m @ 10 Mbps (Extend Mode only) • Optical Spec & Distance: Depends on installed optical module • MAC Address Table: 8192 entries • Max Switching Capacity: 52 Gbps • Max Forwarding Rate: 38.68 Mpps
🔋 Power Specifications
• Power Method: AC • Input Voltage: 100–240V~, 50/60Hz • Power Supply Capacity: 300W • Max Power Consumption (excluding PoE): 10W
📡 Supported Protocols
• IEEE 802.3 Standards: – 802.3i 10BASE-T – 802.3u 100BASE-TX – 802.3ab 1000BASE-T – 802.3z 1000BASE-X – 802.3x Flow Control – 802.3af PoE – 802.3at PoE
🛡️ Reliability & Grounding
• Grounding Method: Three-Prong Plug • EMS Protection: IEC/EN 61000-4-5, Level 4 Surge – Power: DM 2kV, CM 6kV
🧱 Mechanical & Installation
• Dimensions: 440 × 204 × 44 mm (17.32 × 8.03 × 1.73 inches) • Casing Material: Metal • Installation Options: Desktop, Rackmount via brackets
📦 Package Contents

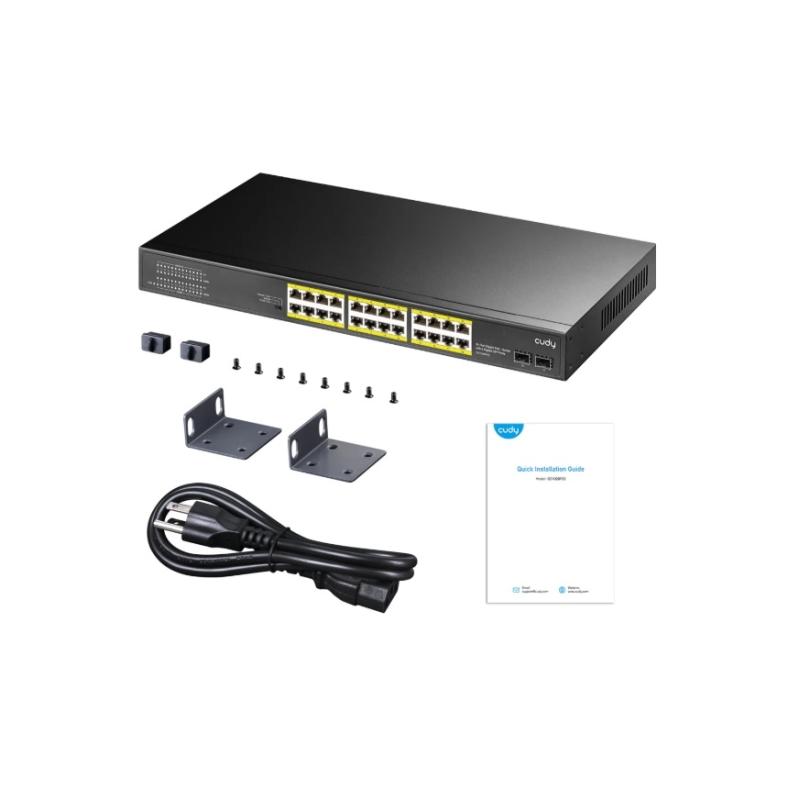

• GS1028PS2 Switch • Power Cord • Mounting Kit • Installation Guide

الشركة : Zero One

الحالة : جديد
